Modern CSS Innovations Unveil Media Query-Free Responsive Hexagonal Grids

A groundbreaking development in web design, recently showcased on CSS-Tricks, demonstrates a pioneering method for constructing intricate, responsive hexagonal and pyramidal grids using advanced CSS features without the need for traditional media queries or JavaScript. This innovative approach significantly refines a five-year-old technique, leveraging cutting-edge CSS properties to achieve dynamic layouts that adapt seamlessly to varying screen sizes, promising a new era of efficiency and flexibility for front-end developers. The technique, while currently limited to Chrome due to its reliance on recently released features, signals a significant shift towards more programmatic and intrinsic design capabilities within CSS itself.

The Evolving Landscape of Responsive Web Design

For over a decade, media queries have been the cornerstone of responsive web design, allowing developers to apply different styles based on device characteristics like screen width, height, and orientation. While effective, this approach often leads to verbose stylesheets, increased maintenance overhead, and a rigid design structure that requires explicit breakpoints for every layout variation. As the diversity of viewing devices continues to expand, ranging from smartwatches to ultra-wide monitors, the limitations of media query-dependent design have become increasingly apparent. Developers have sought more fluid, content-aware, and intrinsically responsive solutions that allow components to adapt organically rather than being dictated by fixed breakpoints.

This quest for more resilient and scalable design patterns led to earlier innovations, including the "Hexagons and Beyond" article from 2021, which explored flexible grid patterns without media queries. The current breakthrough builds directly upon this foundation, pushing the boundaries of what CSS can achieve. By replacing dozens, if not hundreds, of lines of traditional media query-driven CSS and eliminating the need for JavaScript-based layout adjustments, this new method promises not only cleaner code but also potential performance benefits by reducing computational overhead during layout recalculations. The shift represents a natural progression in web development, moving from reactive styling (media queries) to proactive, intrinsic design systems that leverage the inherent power of modern CSS.

Pioneering Modern CSS Features for Dynamic Layouts

The core of this innovation lies in the strategic application of several advanced CSS features that empower styles to respond dynamically to their container’s context rather than the viewport. Key among these are corner-shape, sibling-index(), and unit division, complemented by container-type and the experimental if() statement for conditional logic.

• corner-shape: This property allows for highly customizable border shapes beyond the standard border-radius. In the context of hexagonal grids, corner-shape: bevel combined with specific border-radius values is crucial for accurately rendering the distinct angular geometry of hexagons, a shape often challenging to achieve purely with CSS without complex clip-path properties or SVG.
• sibling-index(): A powerful addition, sibling-index() allows an element to query its position relative to its siblings within the DOM. This function is fundamental to the new grid system, enabling elements to dynamically calculate their grid-column-start or other properties based on their order in the sequence. This eliminates the need for cumbersome :nth-child() selectors for every possible element position, providing a programmatic way to address elements based on their numerical index.
• Unit Division in calc(): The ability to perform unit division within calc() functions is a subtle yet profound enhancement. It enables developers to create unitless numbers, crucial for complex mathematical operations that combine values with and without units (e.g., dividing a length by a length to get a ratio). This mathematical flexibility is essential for deriving responsive grid parameters like the number of items that can fit within a given container size, adapting on the fly.
• container-type: inline-size: This property transforms an element into a "container query" context, allowing its children to query its own size, not just the viewport’s. By setting container-type: inline-size on the main grid container, child elements can dynamically calculate how many items can fit (var(--_n)) using 100cqw (100 container query width units), ensuring the grid adapts to its allocated space rather than the entire screen.
• if() statement (CSS Conditionals): Currently an experimental feature, the if() statement introduces true conditional logic directly into CSS. This allows developers to apply styles based on whether specific conditions are met, such as whether a calculated variable (--_d or --_c) evaluates to zero (indicating an integer value) or if another variable (--_i) is positive. This enables the elegant combination of different layout rules within a single property declaration, providing unprecedented control over dynamic styling.

These features collectively represent a paradigm shift, moving CSS beyond a declarative styling language to one capable of intricate, logic-driven computations. This capability is paramount for generating complex, self-adjusting layouts like the pyramidal hexagon grid without external scripting or static breakpoints.

From Classic to Pyramidal: A Deep Dive into Grid Construction

The journey to the responsive pyramidal grid begins with a foundational understanding of its structure and the initial CSS Grid configuration. Unlike previous Flexbox-based attempts, the new method leverages CSS Grid for its superior control over item placement within columns and rows.

The HTML structure remains simple: a container div holding multiple generic div elements, each representing a hexagon.

<div class="container">
  <div></div>
  <div></div>
  <!-- etc. -->
</div>

The initial CSS setup for the container defines key variables for size (--s) and gap (--g) and establishes the grid:

.container
  --s: 40px;  /* size  */
  --g: 5px;   /* gap */
  display: grid;
  grid-template-columns: repeat(auto-fit, var(--s) var(--s));
  justify-content: center;
  gap: var(--g);
  container-type: inline-size; /* Enables container queries */

A crucial detail here is grid-template-columns: repeat(auto-fit, var(--s) var(--s)). By repeating var(--s) twice, the grid is configured to always have an even number of columns. Each individual hexagon item then spans two of these columns (grid-column-end: span 2), allowing precise control over shifting elements between rows. This span 2 property is key to creating the staggered effect necessary for both classic and pyramidal hexagon grids.

The individual hexagon shapes are crafted using a combination of aspect-ratio, border-radius, and the aforementioned corner-shape: bevel. A negative margin-bottom is applied to each item to create the characteristic overlapping vertical arrangement of hexagons, ensuring tight packing. The calculation for this margin is adjusted from previous implementations to account for the span 2 column structure: margin-bottom: calc((2*var(--s) + var(--g))/(-4*cos(30deg))).

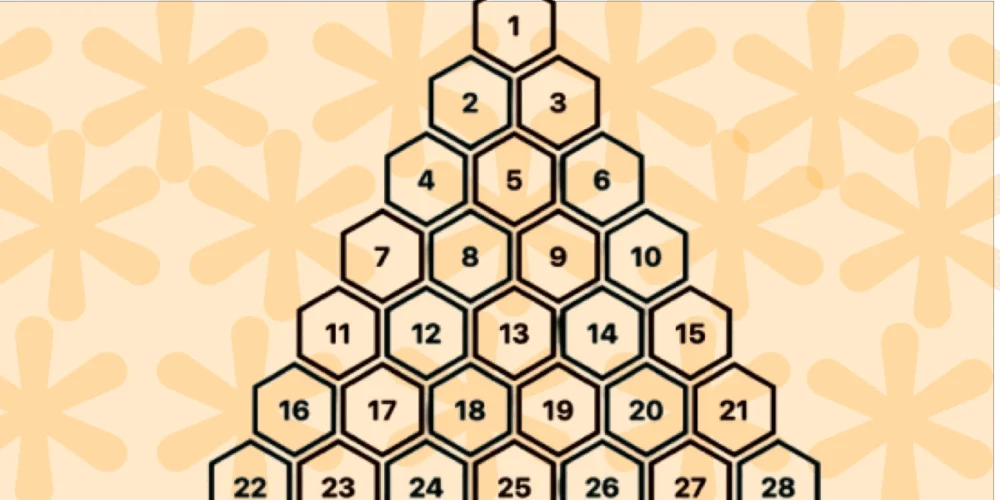

The "pyramidal" arrangement, where elements form a triangular stack, is achieved by strategically setting the grid-column-start property for specific elements. The challenge lies in identifying which elements need this adjustment and calculating their exact starting column dynamically. Observing the pattern of a pyramid reveals that the first element of each new row (1st, 2nd, 4th, 7th, 11th, etc.) needs to be shifted inward. This sequence (1, 2, 4, 7, 11…) corresponds to triangular numbers plus one, a well-known mathematical sequence.

To avoid a long list of static :nth-child() selectors, the innovation utilizes a mathematical formula derived from the triangular number sequence: j = sqrt(2*index - 1.75) - .5, where index is the element’s position (obtained via sibling-index()). If j evaluates to a whole number, that element is identified as the start of a new row in the pyramid.

The grid-column-start for these identified elements is then set to calc(var(--_n) - var(--_j)), where var(--_n) is the dynamically calculated number of items that can fit across the container’s width (derived using 100cqw) and var(--_j) is the calculated integer j. This elegant mathematical solution, combined with sibling-index() and mod(), allows for any number of items to form a perfect pyramid without predefined breakpoints or manual adjustments.

Seamless Transition: The Responsive Hybrid Grid

The true brilliance of this modern CSS technique is its ability to not only construct a static pyramid but also to make it dynamically responsive, transitioning into a classic, packed hexagon grid when the container size dictates. This hybrid behavior is achieved without a single media query, instead relying on sophisticated conditional logic within the CSS itself.

The goal is to maintain the pyramidal structure as long as the container is wide enough to accommodate it. Once the available space reduces beyond a certain point, or when the number of items exceeds the pyramid’s capacity, subsequent elements should seamlessly fall into a standard, tessellated hexagon grid pattern. This means certain elements, which would normally continue the pyramid’s inward shift, must instead align differently, typically starting at grid-column-start: 2 to create the staggered row effect of a classic grid.

Identifying these "transition" elements requires another complex mathematical formula, this time relating to the number of rows in the classic grid section and the total items: i = (index - 2 + N*(3 - N)/2)/(2*N - 1). If i is a positive integer, the element is marked for the responsive, classic grid layout.

The challenge then becomes how to apply these two distinct grid-column-start rules (one for the pyramid, one for the responsive classic grid) to potentially overlapping sets of elements using a single declaration. This is where the experimental if() statement becomes indispensable.

The grid-column-start property is assigned conditionally:

grid-column-start:
  if(
    style((--_i > 0) and (--_c: 0)): 2; /* First condition: responsive grid */
    style(--_d: 0): max(0,var(--_n) - var(--_j)); /* Second condition: pyramidal grid */
  );

The order of these conditions is critical. The responsive grid condition (checking for positive i and integer i) is prioritized. If an element satisfies this condition, its grid-column-start is set to 2. This ensures that when the layout demands a classic grid arrangement, those elements correctly align to form it. If the first condition is false, the system then checks the pyramidal grid condition (checking for integer j). If true, its grid-column-start is calculated as max(0, var(--_n) - var(--_j)).

The max(0, ...) function is a clever trick to handle the edge cases of the pyramidal calculation. Without it, var(--_n) - var(--_j) could result in negative values for grid-column-start if the pyramid extends beyond the available N columns. While negative values are technically valid in CSS Grid for explicit placement, they can lead to unintended layouts when auto-placement is desired. By setting a minimum of 0, any calculated negative value is effectively converted to 0, which CSS Grid treats as an invalid start line. When grid-column-start receives an invalid value, the browser intelligently falls back to its default auto-placement behavior, ensuring elements seamlessly integrate into the standard grid flow without explicit positioning. This robust fallback mechanism is vital for the grid’s fluid responsiveness across a wide range of content and container sizes.

The result is a mesmerizing, self-adjusting grid that builds a pyramid structure, then gracefully transitions to a packed hexagonal layout as more items are added or as the screen size changes, all without a single line of JavaScript or media queries.

Broader Implications for Web Development

This groundbreaking work signifies a pivotal moment in front-end development, heralding a future where CSS is not merely a styling language but a powerful tool for programmatic layout generation. The implications are far-reaching:

• Enhanced Maintainability and Scalability: By consolidating complex layout logic into a few lines of intrinsic CSS, developers can drastically reduce the volume of code, making projects easier to maintain, debug, and scale. New elements can be added without modifying existing CSS, as the grid dynamically adjusts.
• Improved Performance: Eliminating media queries and JavaScript for layout logic can lead to lighter stylesheets and faster page loads. The browser’s native rendering engine is highly optimized for CSS calculations, potentially offering performance gains over JavaScript-driven layout computations.
• New Design Paradigms: The ability to create highly dynamic and complex grid patterns with such elegance opens doors for more sophisticated and creative web layouts that were previously challenging or impossible to implement purely with CSS. Designers can envision more fluid and organic interfaces, confident that CSS can deliver.
• Shift in Developer Mindset: This advancement encourages a deeper understanding of CSS’s mathematical and logical capabilities. Developers will increasingly need to think programmatically, formulating algorithms and conditions directly within their stylesheets, moving away from a purely declarative approach.
• Accessibility Improvements: Intrinsic responsiveness, by its nature, often leads to more accessible layouts that adapt gracefully to various user settings and assistive technologies without relying on fragile breakpoint logic.

Industry Reactions and Future Outlook

The web development community is keenly watching the evolution of these modern CSS features. While corner-shape, sibling-index(), unit division, and the if() statement are still relatively new or experimental, their potential to revolutionize responsive design is undeniable. The current limitation to Chrome support is a temporary hurdle; as these features mature and gain wider browser adoption, they are poised to become standard tools in the front-end toolkit.

Experts suggest that this advancement is a clear indication of CSS’s trajectory towards becoming a more powerful, self-sufficient language capable of handling complex layout challenges that traditionally required JavaScript. The move towards container queries and intrinsic design principles is a major theme in modern CSS development, and this hexagon grid implementation serves as a compelling proof-of-concept for that vision. Developers are urged to experiment with these features, contribute feedback to browser vendors, and prepare for a future where CSS offers unprecedented control over dynamic content presentation.

Beyond Hexagons: Versatile Grid Patterns

The principles demonstrated in the hexagon grid are not confined to a single shape. The article further illustrates the versatility of this modern CSS approach by showcasing variations that create rhombus, octagon, and even circular grids. This highlights that the underlying mathematical and logical framework can be adapted to generate a wide array of geometric patterns, proving the method’s robustness and broad applicability for diverse and visually engaging web layouts.

Conclusion

The journey from the classic hexagon grid to this responsive pyramidal masterpiece underscores the remarkable evolution of CSS. What once required extensive JavaScript, numerous media queries, and often "hacky" CSS solutions can now be achieved with a compact, elegant, and mathematically driven stylesheet. This development is more than just a trick for creating interesting shapes; it represents a fundamental shift in how developers approach responsive design. By empowering CSS with dynamic calculation, conditional logic, and intrinsic responsiveness, web development enters an exciting new phase, promising more flexible, performant, and maintainable web experiences for users and developers alike.
