The fundamental understanding of how the human brain processes circular data visualizations is undergoing a significant shift as new research challenges the long-standing "angle theory." For decades, the prevailing consensus among data visualization experts, educators, and software designers has been that pie charts are interpreted primarily through the perception of angles at the center of the circle. However, a series of comprehensive studies and a recently released analytical overview by researcher Robert Kosara suggest that this foundational assumption is likely incorrect. The implications of this discovery reach beyond academic curiosity, affecting how data is presented in business, journalism, and education, and potentially rehabilitating the reputation of much-maligned formats such as the donut chart.
The Traditional Paradigm: The Primacy of Angle
Since the early 20th century, the pedagogical approach to data visualization has taught that the human eye calculates the relative value of a pie slice by measuring the aperture of the angle where the two radii meet. This theory provided a logical basis for criticizing variations of the pie chart. For instance, the donut chart—a pie chart with a removed center—has been frequently dismissed by purists as less effective because the central vertex is missing, supposedly making it impossible for the viewer to accurately judge the angle.
Similarly, the traditional theory suggested that changing the radius of a slice (as seen in Nightingale Rose diagrams or Coxcomb charts) would not interfere with the perception of data, provided the angle remained constant. However, experimental data now indicates that the visual system relies on a more complex combination of cues, with area and arc length appearing to play far more significant roles than previously documented.
A Century of Controversy: The Chronology of Pie Chart Analysis
The debate over the efficacy of circular charts is not a modern phenomenon. To understand the current shift in perspective, one must look at the timeline of graphical perception research:
- 1926: The Eells Study and Initial Backlash – Walter Crosby Eells published a paper defending the pie chart, arguing it was more effective than bar charts for showing part-to-whole relationships. This sparked an immediate and heated debate in the Journal of the American Statistical Association, with critics labeling the pie chart as "psychologically unsound."
- 1984: Cleveland and McGill’s Hierarchy – William Cleveland and Robert McGill conducted seminal research on graphical perception. They established a hierarchy of visual tasks, placing "position along a common scale" (bar charts) at the top and "angle" much lower. This study became the bedrock for the modern "anti-pie chart" sentiment in professional data science.
- 2016: The Skewed Pie Studies – Robert Kosara and Drew Skau conducted a series of large-scale studies using Amazon Mechanical Turk to test how accurately participants could estimate values in modified pie charts. They introduced "distractor" elements, such as changing the radius or skewing the shape, to see which changes most affected accuracy.
- 2019: The 3D and Area Isolation Study – Further research utilized 3D-projected pie charts to intentionally distort angles while keeping area or arc length measurable. The results consistently pointed away from angle as the primary cue.
- 2021: Synthesis and Video Analysis – The culmination of this research was synthesized into a comprehensive report and visual presentation, providing five specific points of evidence that debunk the angle-only theory.
Deconstructing the Evidence: Why Angle Fails as an Explanation
The research conducted between 2016 and 2021 provides several empirical reasons to doubt the angle theory. First, the "Donut Paradox" serves as a primary counter-argument. If the angle at the center were the only metric used for interpretation, the accuracy of reading a donut chart should be significantly lower than that of a standard pie chart. However, multiple studies have shown that users read donut charts with nearly the same level of precision as they do pie charts. This suggests that the brain is utilizing the outer arc length or the total area of the segment rather than the non-existent central vertex.
Second, the impact of the radius is telling. In experiments where the radii of different slices were varied—creating a "bumpy" or irregular pie chart—participants’ accuracy decreased significantly. If angle were the primary cue, these variations in radius should have been irrelevant distractions, as the angle at the center remained unchanged. The fact that viewers were misled by radius changes suggests they are heavily influenced by the total surface area of the slice.
Third, the 3D pie chart experiments provided a unique "stress test" for these theories. By tilting a pie chart in a 3D perspective, the angles are mathematically distorted (an acute angle may appear obtuse depending on the tilt). Despite this distortion, viewers often remained surprisingly accurate in their estimations, or their errors tracked more closely with the distorted area than with the distorted angle.
Quantitative Findings and Participant Accuracy
In the studies cited by Kosara, participants were asked to estimate the percentage represented by a specific slice in various chart types. The data revealed that:
- Arc Length: There is a high correlation between the length of the outer boundary of the slice and the viewer’s accuracy.
- Area: When area and angle were put in conflict (by manipulating the radius), area emerged as a stronger predictor of the participant’s estimate than the angle.

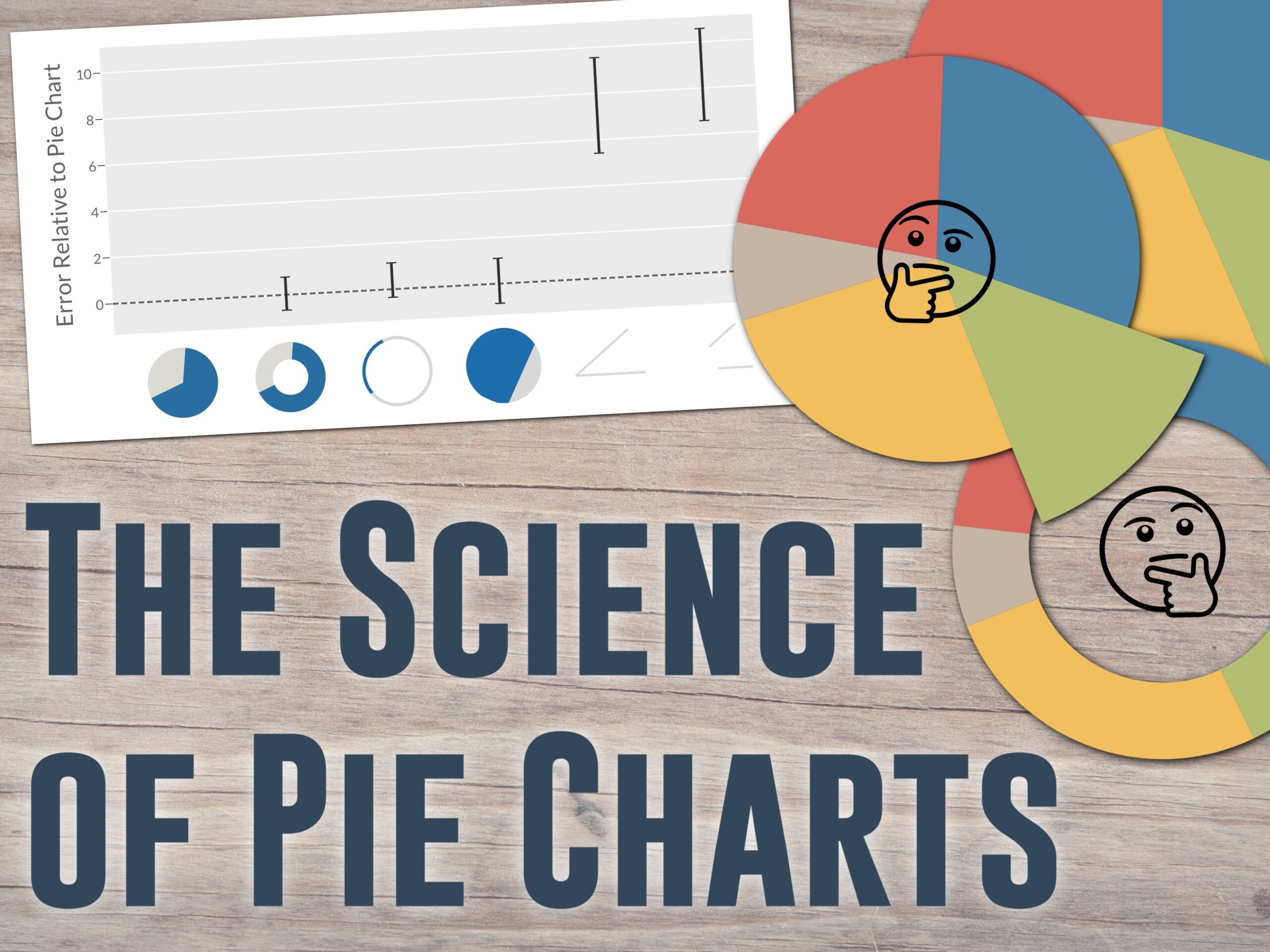

- Redundant Encoding: The human brain appears to use "redundant encoding," meaning it looks at angle, area, and arc length simultaneously to form an estimate. However, when these cues are separated, angle is consistently the weakest of the three.
These findings suggest that the human visual system is not a protractor, but rather a sophisticated area-estimation engine. This aligns with broader psychological theories of perception, such as the Weber-Fechner Law, which describes how humans perceive changes in physical stimuli.
Professional Implications for Data Communication
The shift in understanding from angle to area has practical implications for designers and data analysts. If area and arc length are the primary drivers of comprehension, then the categorical dismissal of donut charts by many data visualization experts is likely unjustified. In many cases, a donut chart can provide the same level of information as a pie chart while offering additional space in the center for labels or total values, without sacrificing the viewer’s ability to interpret the data.
Furthermore, this research cautions against the use of "exploded" pie charts or charts with varying radii unless the intent is specifically to emphasize area. If a designer increases the radius of a slice to make it "pop," they are not just adding emphasis; they are fundamentally altering the viewer’s perception of the data value itself, likely leading to an overestimation of that category.
The findings also provide a scientific basis for why 3D pie charts are notoriously difficult to read. In a 3D projection, both the area and the arc length are distorted unevenly depending on their position relative to the "camera" angle. Since we now know the brain relies on these cues, the 3D effect isn’t just an aesthetic choice; it is a direct corruption of the primary data-carrying elements.
Broader Impact and the Evolution of Data Literacy
The dissemination of this research has been recognized by the broader data community, as evidenced by Kosara’s YouTube channel and research being shortlisted for the 2021 Data Literacy Awards. This recognition highlights a growing movement toward evidence-based design in data visualization, moving away from "rules of thumb" toward a more nuanced understanding of human cognition.
The ongoing debate, which traces its roots back to 1926, emphasizes that data visualization is as much a psychological discipline as it is a mathematical one. As tools for creating charts become more accessible to the general public, the importance of grounding design choices in perceptual science becomes paramount.
In conclusion, the "angle" theory of pie charts appears to be a legacy concept that does not hold up under rigorous experimental scrutiny. By acknowledging that area and arc length are the primary cues, the field of data visualization can move toward more flexible and effective ways of representing part-to-whole relationships. This research validates the intuitive use of donut charts and provides a clear warning against the distortion of area in circular displays, ensuring that the next generation of data communication is both more accurate and more scientifically sound.
